AirSpade 4000/5000 Utility Barrel Assembly with Dirt Shield - 4 Ft

Part Number:

AirSpade 4000/5000 Utility Barrel Assembly with Dirt Shield - 4 Ft (ASU4004BD)
ASU4004BD
AirSpade 4000/5000 Utility Barrel Assembly with Dirt Shield - 4 Ft (ASU4004BD)
Regular price $633.68
Regular price Sale price $633.68
Sale Sold out

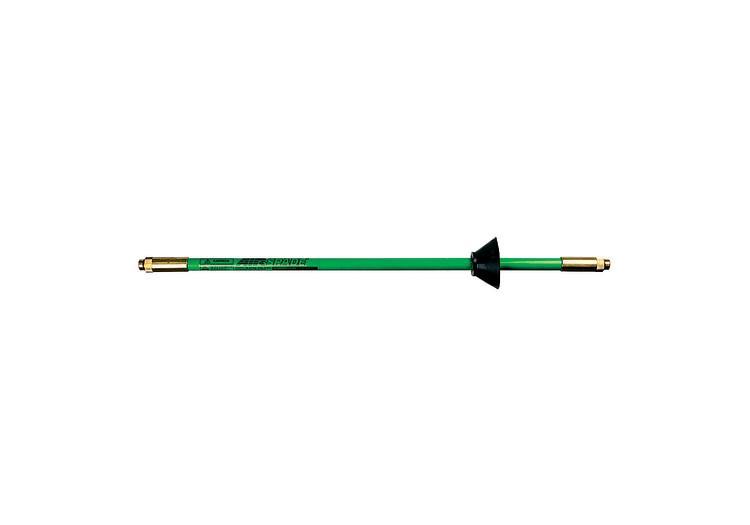

Heavy-duty, electrically insulated, 4 Ft. barrel for AirSpade 4000/5000 Utility air-excavation tools. Adjustable dirt shield protects operator from flying debris. Constructed from high-pressure rated, insulated inner air hose surrounded by non-conductive, rigid fiberglass outer tube. Inner air hose rated to 75kV per Ft. for 5 minutes per SAE 100R7. Outer fiberglass tube rated to 100kV per Ft. for 5 minutes per ASTM F711. Non-sparking Brass connection hardware. Compatible with all AirSpade 4000/5000 Utility components and accessories.

View full details
Features
  • Rugged, lightweight, insulated 4 Ft. barrel
  • Non-conductive fiberglass outer tube with insulated inner air hose
  • Adjustable, rubber dirt shield
  • Non-sparking Brass sleeves and threads
  • Knurled surfaces provide superior grip for secure connections
  • Dual male threaded connections
  • Dual male threaded connections
  • (1) Dirt Shield
Specifications
Part Number Dimensions
(L" x W" x H")
Weight (lbs)
Part Number ASU4004BD Dimensions
(L" x W" x H")
47 X 5.5 X 5.5
Weight (lbs) 4.6
Lead Time
Lead Time: 2 Days
