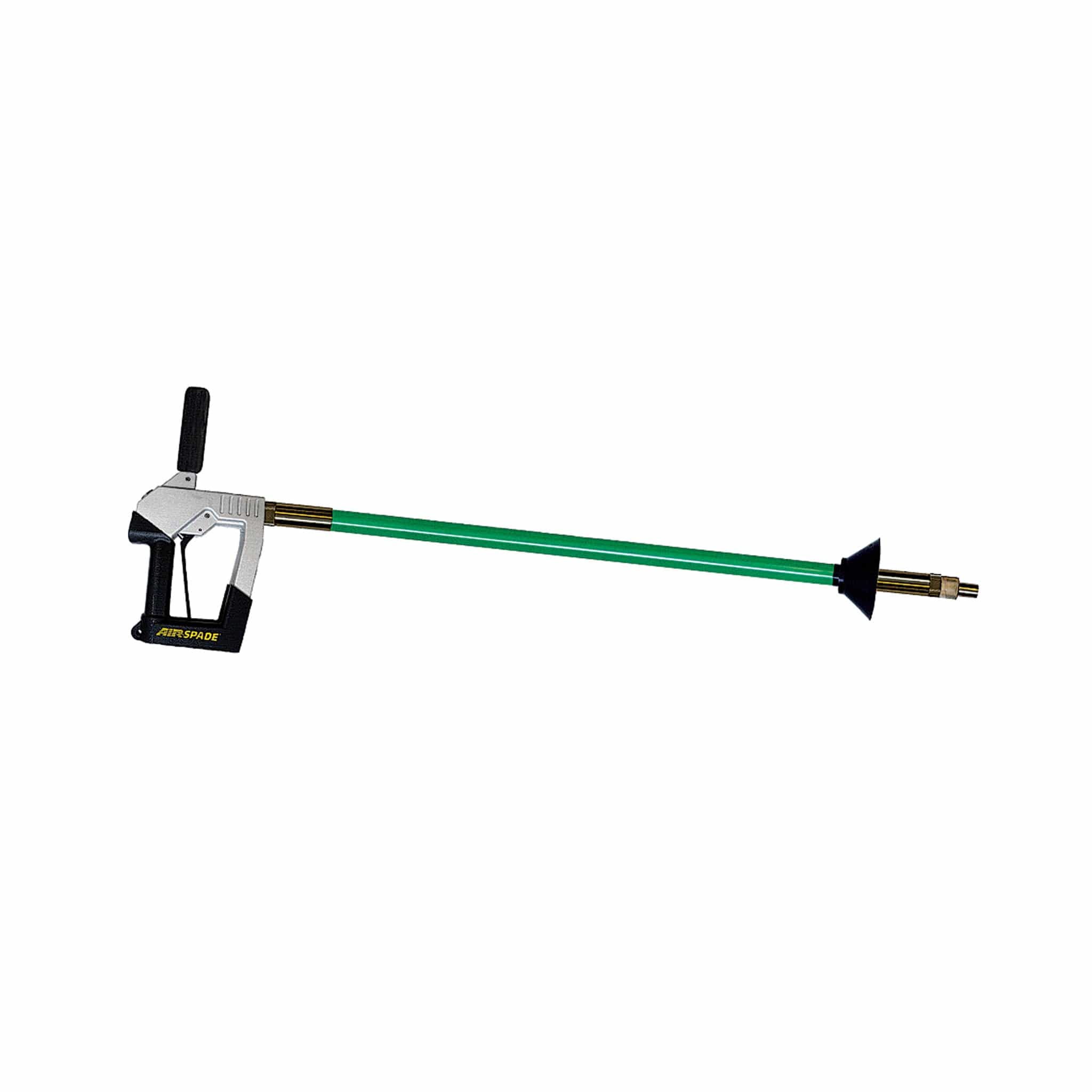

AirSpade 4000 Utility Series - 105 cfm with 4 Ft Barrel

Part Number:

AirSpade 4000 Utility Series - 105 cfm with 4 Ft Barrel (ASU4105G4)
ASU4105G4
AirSpade 4000 Utility Series - 105 cfm with 4 Ft Barrel (ASU4105G4)
ASU4105G4
AirSpade 4000 Utility Series - 105 cfm with 4 Ft Barrel (ASU4105G4)
ASU4105G4
AirSpade 4000 Utility Series - 105 cfm with 4 Ft Barrel (ASU4105G4)
ASU4105G4
AirSpade 4000 Utility Series - 105 cfm with 4 Ft Barrel (ASU4105G4)
AirSpade 4000 Utility Series - 105 cfm with 4 Ft Barrel (ASU4105G4)
AirSpade 4000 Utility Series - 105 cfm with 4 Ft Barrel (ASU4105G4)
AirSpade 4000 Utility Series - 105 cfm with 4 Ft Barrel (ASU4105G4)
Regular price $1,879.30
Regular price Sale price $1,879.30
Sale Sold out

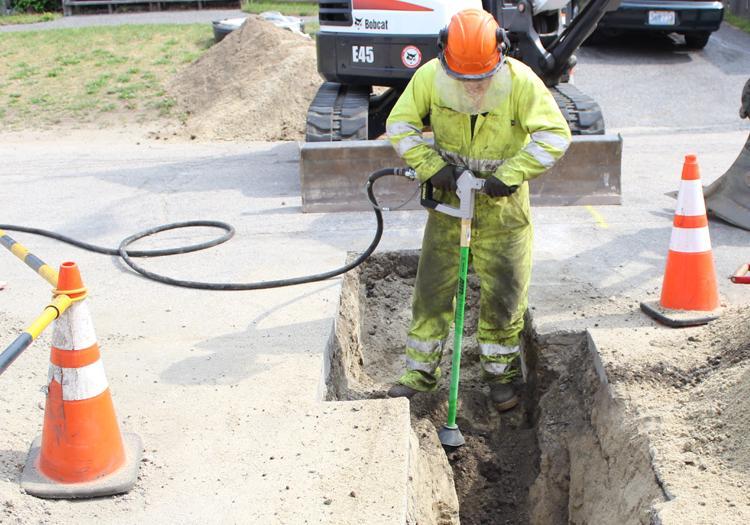

Setting a new standard for air excavation tools, the Utility AirSpade 4000 Series harnesses the power of compressed air to safely uncover underground utility lines without harm. AirSpade's high-performance, proprietary Supersonic Nozzle generates a laser-like jet that moves at twice the speed of sound for faster, more effective digging. With non-sparking bronze nozzle, brass components, electrically insulated 4 ft. barrel rated to 300kV, and a lightweight, ergonomic handle, the Utility AirSpade 4000 maximizes jobsite safety while minimizing operator fatigue. Aluminum handle features full size grip opening to accommodate linesman's gloves. Dead-man trigger ensures safe operation and trigger guard prevents accidental activation. Retractable handle provides superior operator control. Integral pressure gauge ensures optimal digging performance. Made in USA.

View full details
Features
  • Rugged, ergonomic handle with plastic-coated grip
  • Retractable handle and integral air-pressure gauge
  • Dead-man trigger with trigger guard
  • Insulated, 4 Ft. fiberglass barrel rated up to 300kV
  • Non-sparking Brass barrel sleeves and threaded connectors
  • Adjustable, rubber spray shield
  • Non-sparking, Nickle Aluminum Bronze supersonic nozzle; 105, 150 and 225 cfm available
  • Inlet: 3/4 NPT
  • Chicago-style swivel connector
  • (1) Utility AirSpade 4000 Handle
  • (1) 4 Ft. insulated, fiberglass barrel with dirt shield
  • (1) 105 cfm non-sparking bronze supersonic nozzle
Specifications
Part Number Inlet Min. Compressor Required (hp) Soil Excavation Rate (cubic ft/min) Noise Level (dB) Flow (cfm) Dimensions
(L" x W" x H")
Weight (lbs)
Part Number ASU4105G4 Inlet 3/4" FNPT Min. Compressor Required (hp) 23 Soil Excavation Rate (cubic ft/min) 0.9 - 1.5 Noise Level (dB) 116 Flow (cfm) 105 Dimensions
(L" x W" x H")
49.5 X 12 X 8
Weight (lbs) 16
Lead Time
Lead Time: 12 Days
