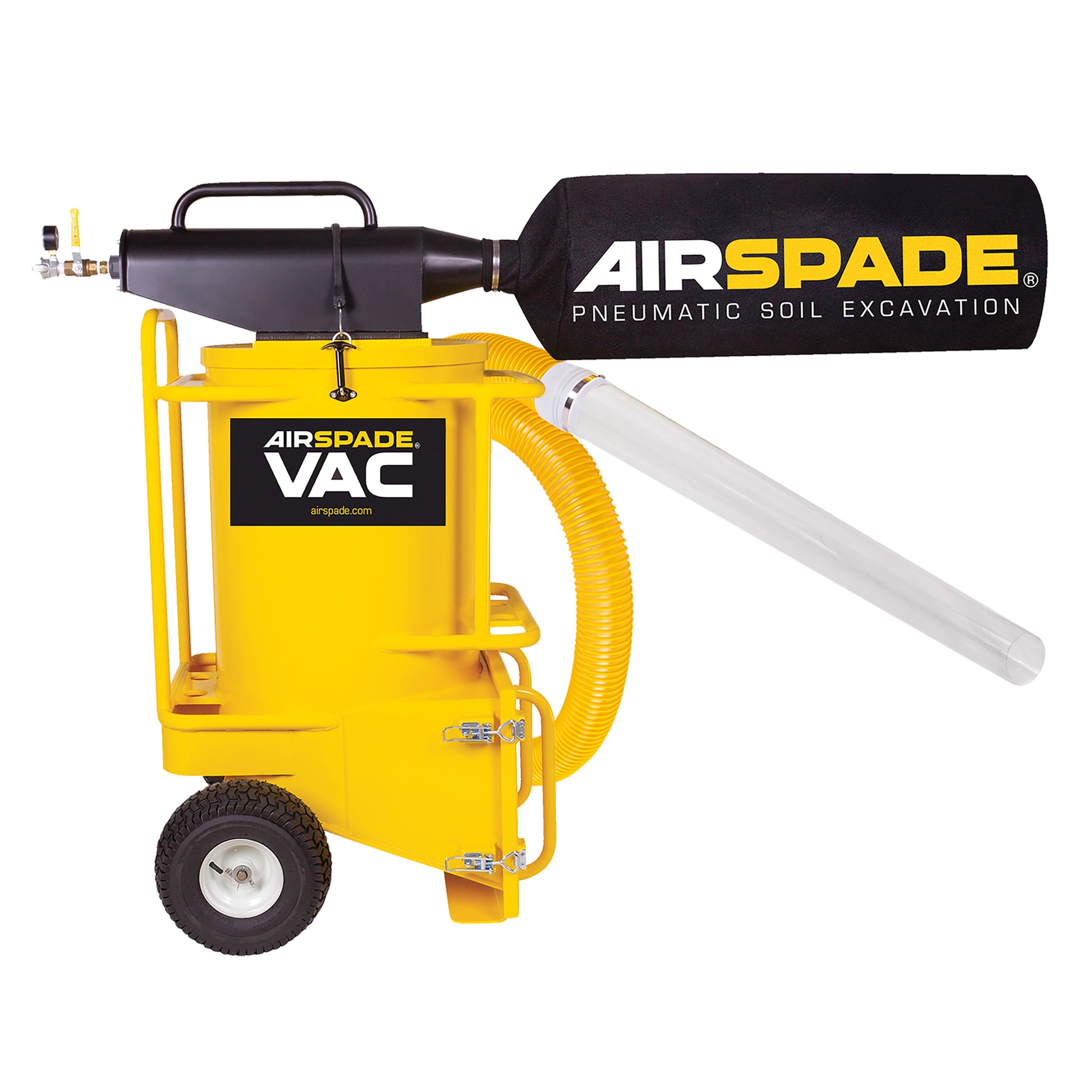

AirSpade Vac Vacuum Excavator
Part Number:
Couldn't load pickup availability
Powered by compressed air, AirSpade Vac is the mobile alternative to large, expensive vacuum trucks. Effectively vacuums up to 2 cubic ft/min of spoils including dirt, sand, gravel, small rocks, and muck.
Designed to run off a standard, 185 cfm tow-behind air compressor, the AirSpade Vac features a powerful multi-stage venturi vacuum engine with no electric motors to burn out and no bearings or rotating parts to wear out. Tank capacity of 11 cubic ft. (82 gallons) with an extra-wide dump door facilitates emptying spoils for backfilling. Washable exhaust filter bag captures dust and eliminates need for internal filter. Rugged 15" pneumatic tires provide superior maneuverability. Featuring all aluminum construction and heavy-duty side rails, loading the AirSpade Vac onto the bed of a pickup truck is an easy task.
Assembled in USA.
Learn more about AirSpade Vac.
For additional information including manufacturing lead time, please email info@airspade.com

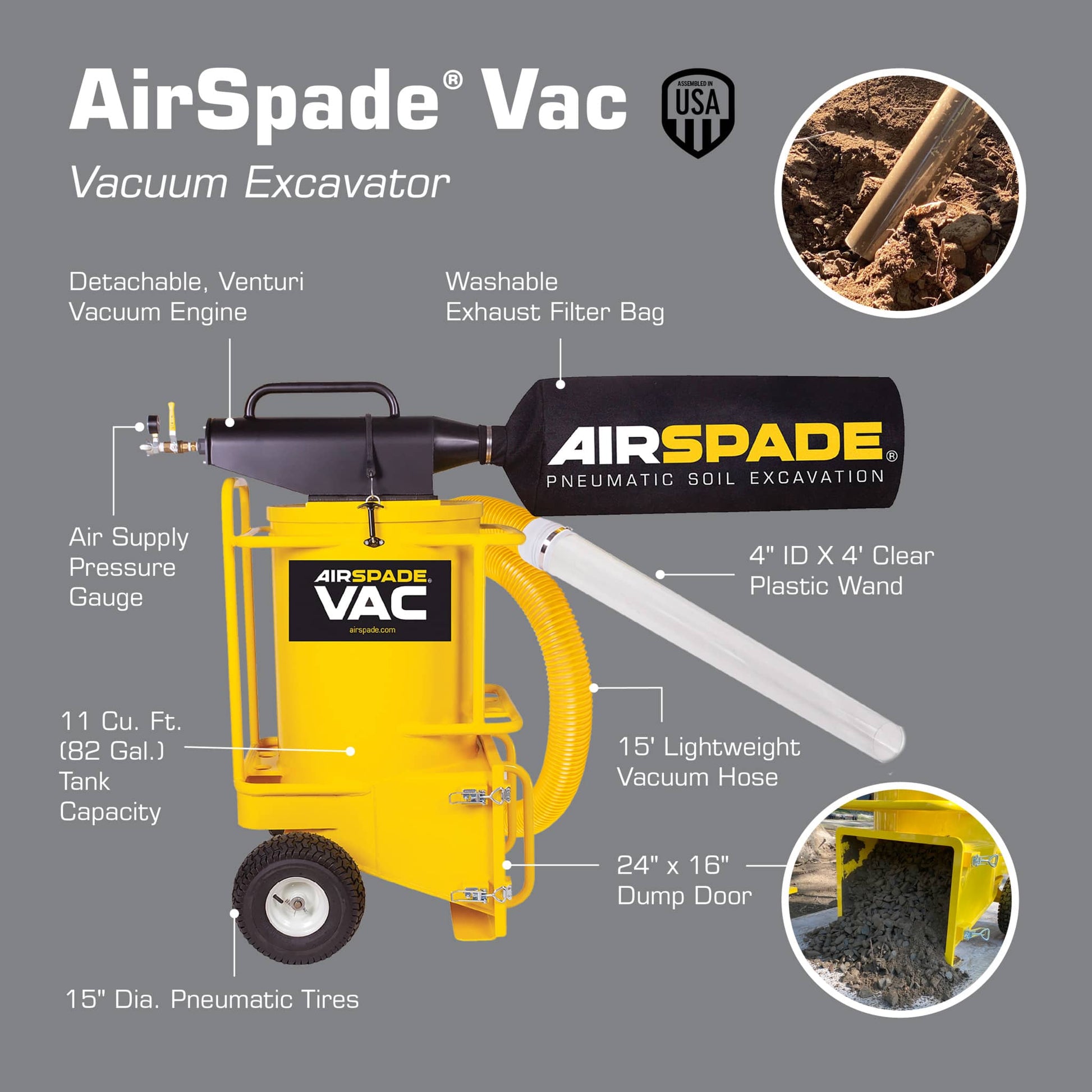

- Heavy-duty, all aluminum construction
- 11 cubic ft (82 gallon) capacity tank
- 24" x 16" dump door
- Heavy-duty rear rails
- Removable, venturi vacuum engine assembly
- Washable exhaust filter bag
- 15" diameter pneumatic tires
- Air supply pressure gauge
- 3/4" FNPT compressed air inlet with Universal Coupler
- 4" ID x 15 ft heavy-duty, lightweight vacuum hose
- 4" ID x 4 ft clear plastic vacuum wand
- (1) AirSpade Vac Engine and Tank Assembly
- (1) 4" x 15' Lightweight Vacuum Hose
- (1) 4' Vacuum Wand
- (1) Operations Manual
| Part Number | Inlet | Min. Compressor Required (hp) | Noise Level (dB) | Flow (cfm) | Vacuum Lift (in H20) |
Dimensions (L" x W" x H") |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| Part Number AVU16540 | Inlet 3/4" | Min. Compressor Required (hp) 36 | Noise Level (dB) 99 | Flow (cfm) 750 | Vacuum Lift (in H20) 262 |
Dimensions (L" x W" x H") 79 X 38 X 61.5 |
Weight (lbs) 218 |
